| Feature | Technical Description |
| 1、HW SPEC | |
| 1.1 Main CPU & SW | |
| CPU | MTK6761 Quad-Core CPU , 2.0Ghz , Support Pin-Pin Octa-Core CPU |
| Android | Android 10 |
| Language | Multi-Language |
| 1.2 Memory | |
| RAM+ROM | 2GB +16GB （ Optional 3GB + 32GB ） |
| SD Card | Up to 32GB |
| 1.3 LCD | |
| LCD | 4" |
| LCD resolution | 854 x 480dpi |
| LCD Colors | 16M color IPS TFT |
| 1.4 Touch | |
| Touch type & size | G+F+F, Support glove wear touch , 480 x 800 |
| Glass | Tempered Glass |
| Multi-touch | 5 point touch screen |
| 1.5 Sensor | |
| Sensor | Light Sensor , G-Sensor , 3D Sensor , Proximity Sensor |
| 1.6 Frequency/Bands | |
| Network ( GSM , WCDMA , FDD , TDD ) | GSM:B2/ B3 / B5 / B8 WCDMA:B1 / B2 / B4 / B5 / B8 FDD-LTE:B1/B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B17 / B20 / B28 (a&b) TDD-LTE : B38 / B39 / B40 / B41 |
| 1.7 Camera | |
| Front& Rear Camera | Back:8M with focus Front:5M Flash Light:real light |
| 1.8 Wi-Fi | |
| IEEE802.11a | Yes (5G) |
| IEEE802.11b | Yes(2.4G) |
| IEEE802.11g | Yes(2.4G) |
| IEEE802.11n | Yes(2.4G&5G) |
| WIFI anternna Type | Wi-Fi & BT Coexistence Antenna Impedance 50Ohm |
| 1.9 Bluetooth | |
| Version | BT v4.0 with BLE BT2.1+ EDR ( Enhanced Data Rate ) |
| Power Level | (Max) Class 2 |
| Operation distance | (Max) 10 meters |
| 2.0 GPS & A-GPS | |
| GLONASS Support | Yes |
| GPS Support | Yes |
| AGPS Support | Yes |
| GOS antenna Type | Internal FPC antenna |
| 2.1 Speaker & MIC | |
| Output | 2.0W |
| SPL | 116dB |
| Receiver | 1506 |
| MIC Type | Dual Mic With One Noise Reduction Mic |
| MIC Sensitivity | -42dB±3 |
| SIM card | Dual Micro - SIM card |
| Vibrator | Yes |
| 2.2 DMR | |
| Frequency Range | UHF400 - 470MHz ( Support VHF 136 - 174MHz ) |
| Channel Capacity | 16 |
| Transmitting Power | 0.5w/2w |
| Channel Spacing | 12.5/25kHz( Analogue ) 12.5kHz ( Digital ) |
| 2.3 Earjack Interface Type | M6 Connector |
| 2.4 Indicator LED | 3-colors （ Red 、 Green 、 Blue ） |
| 3、MD | |
| 3.1 Size | |
| Height ( H x W x D ) | 142.5 x 72.5 x 25mm |
| Weight | 329g |
| IP code | IP68 |
| Drop Test | 1.5m |

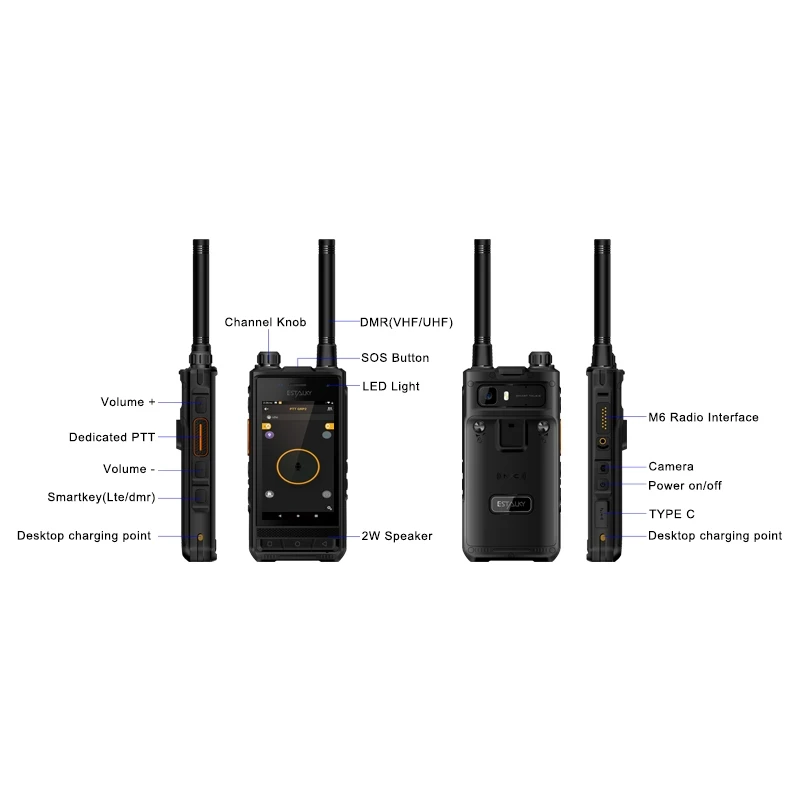

| 3.2 Key buttons | |
| keys button | Channel Knob, PTT , SOS , Power ( on/off ), Volume ( +/- ), Camera... |
| 4、 Battery | |
| Battery type | Li-Po |
| Battery capacity | 4500 mAh |
| Removable battery | Yes |
| 5、 Charge, Data Interfaces | Type C |
| 5.1 Charging | |
| Micro USB (For Handset) | Type C |
| Battery charging terminal (For Cradle) | Support Customized Cradle |
| 5.3 Cradle Spec | |
| Input voltage | DC 5V / 3A |
| Output voltage | DC 5V / 3A DC 4.35V / 0.7A |
| Interface Type | Type C |
| 5.4 Phone Adaptor Spec | |
| Input voltage | AC 100 ~ 240V |
| Output voltage | DC 5V / 2.0A |
| Interface Type | Type C |
| 6、 Environmental Conditions | |
| Operating Temperature | -20℃ ~ 60℃ |
| Storage Temperature | -30℃ ~ 70℃ |
| Humidity | 20 ~ 90% |
| ESD | Contact: ± 8KV Air: ± 12KV |
| RoHS 6 Compliant | Yes |
| 7、 Certification and safety spec | |
| Europe | CE |
| American | FCC |
